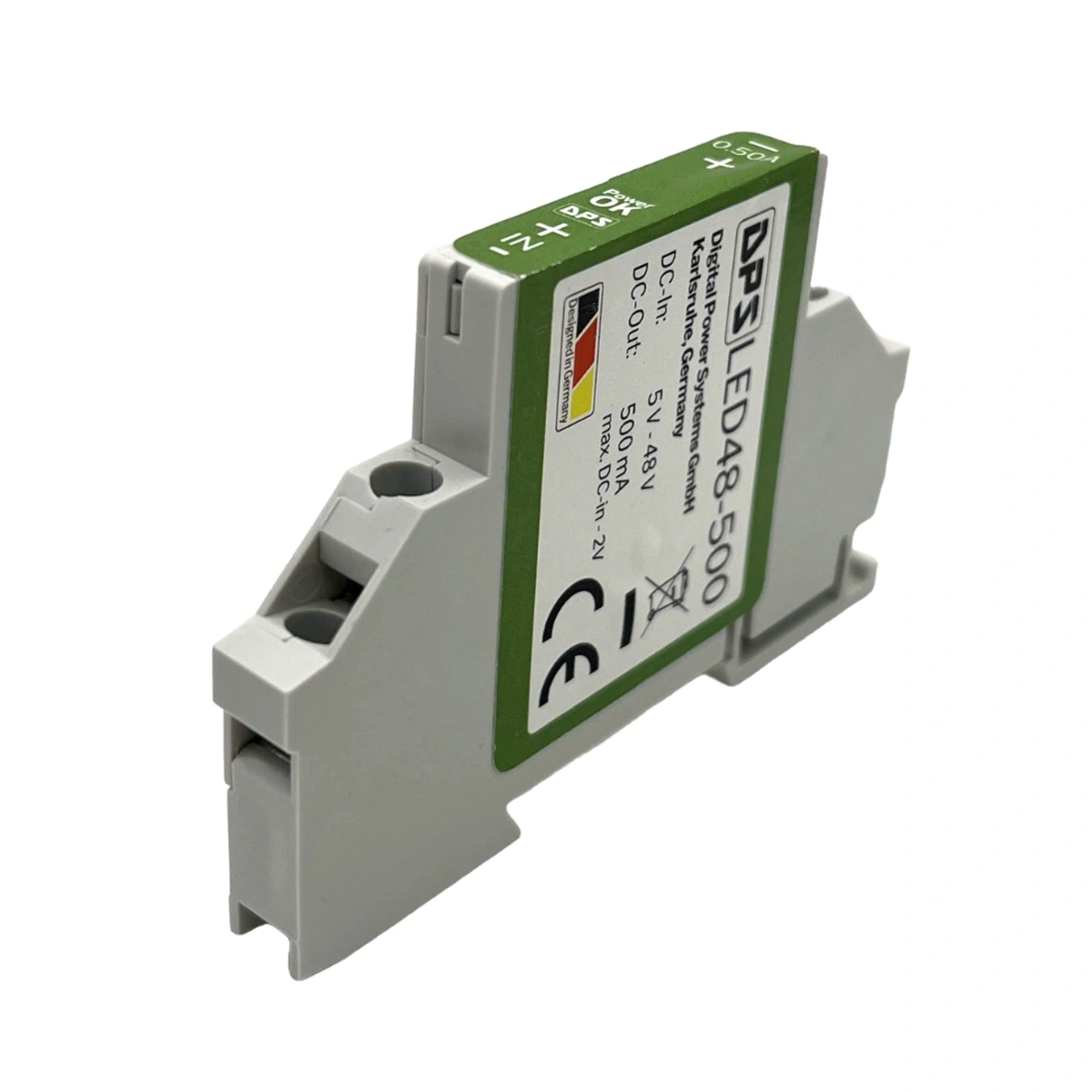

LED48-500
Ultrathin 8.8mm 48V DIN Rail Constant Current DC/DC Converter 500mA output current
| Quantity | Unit Price | Saving |
| 1+ | EUR 23.00 | — |
| 25+ | EUR 19.99 | -13% |
| 100+ | EUR 17.35 | -25% |
| More Quantity, More Savings. Please Quote! | ||
In Stock — 50 units
SKU: LED48-500
Unit: EUR 23.00
Total: EUR 23.00 excl. VAT, plus Shipping costs
Key Features
- Constant Current Buck converter 8.8mm DIN Rail width
- 500mA output current
- Wide input voltage:
- - Uin,min=5V
- – Uin,max=48 V
- Input reverse polarity protection
- Output short proof
- Power Good LED
Product Description
The LED48-500 device is a 48V input 500mA DIN Rail buck converter providing
low ripple constant current output. It’s intended use are tight control cabinets, requiring an additional current driver. The functional
input voltage ranges from 5V to 48V. When
the output voltage and current is achieved,
a green led lights up.
The device is resilient to typical operating
failures: Input reverse polarity, output short
circuit, open circuit, moderate input transients
and moderate output transients.
The device offers solid output current stability over the complete input voltage range.
The device may be operated at ambient temperatures between -40°C und 50°C.
Downloads
help_outline
Missing a file?
If you need a datasheet, certificate, or 3D model, send us a support request and we'll assist you.
Logistics Data
| Weight | 0.03 kg |
| Dimensions | 89 x 9 x 53 mm |
| Country of Origin | Germany |
| HS Code | 8504.40 |
