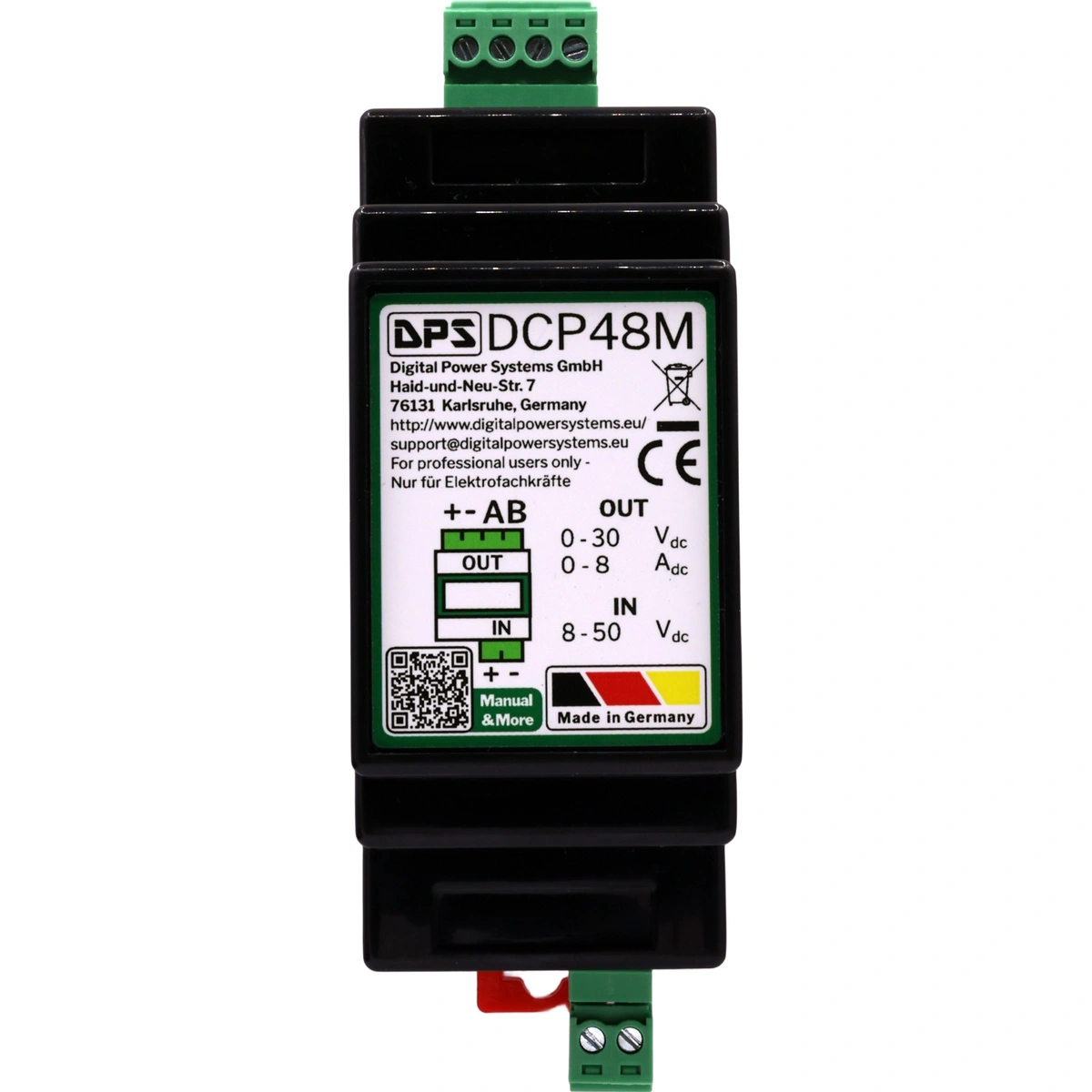

DCP48

48V 8A DIN Rail Modbus CCCV DC/DC converter

Key Features Downloads Similar Products Logistics Data Support

Quantity	Unit Price	Saving
1+	EUR 50.00	—
25+	EUR 39.99	-20%
100+	EUR 32.10	-36%
More Quantity, More Savings. Please Quote!

Out of Stock SKU: DCP48

Unit: EUR 50.00

Total: EUR 50.00 excl. VAT, plus Shipping costs

compare_arrows Add to Comparison

Key Features

Constant Current Constant Voltage
90% typical efficiency (94% peak)
Programmable output voltage range (0V .. 30V)
Programmable output current range (0A .. 8A) - derating required
Output paralleling possible with diodes
Wide input voltage (8V to 50V)
Internal temperature monitoring with Thermal Shutdown
Factory programmable Undervoltage Lockout
Input reverse polarity protection
Output short circuit proof

Product Description

The DCP48 is a constant current constant non-isolated voltage digital DIN Rail buck converter with perfect steady-state output stability. It’s a powerful tool to provide additional lower output voltages in control cabinets. The input voltage ranges from 8V (min. 90% of the output voltage) to 50V. For more power, outputs can be paralleled using a diode. The device is programmable over Modbus holding registers. Output parameters can be set and requested via Modbus. The input voltage must always be higher than the input voltage. The device can is default configured to an Output Voltage Uout=5V, while 12V and 24V options are also available. The device is resilient to typical operating failures: Input reverse polarity, output short circuit, open circuit, moderate input transients. It between -40°C and 50°C. A derating over temperature is required.
