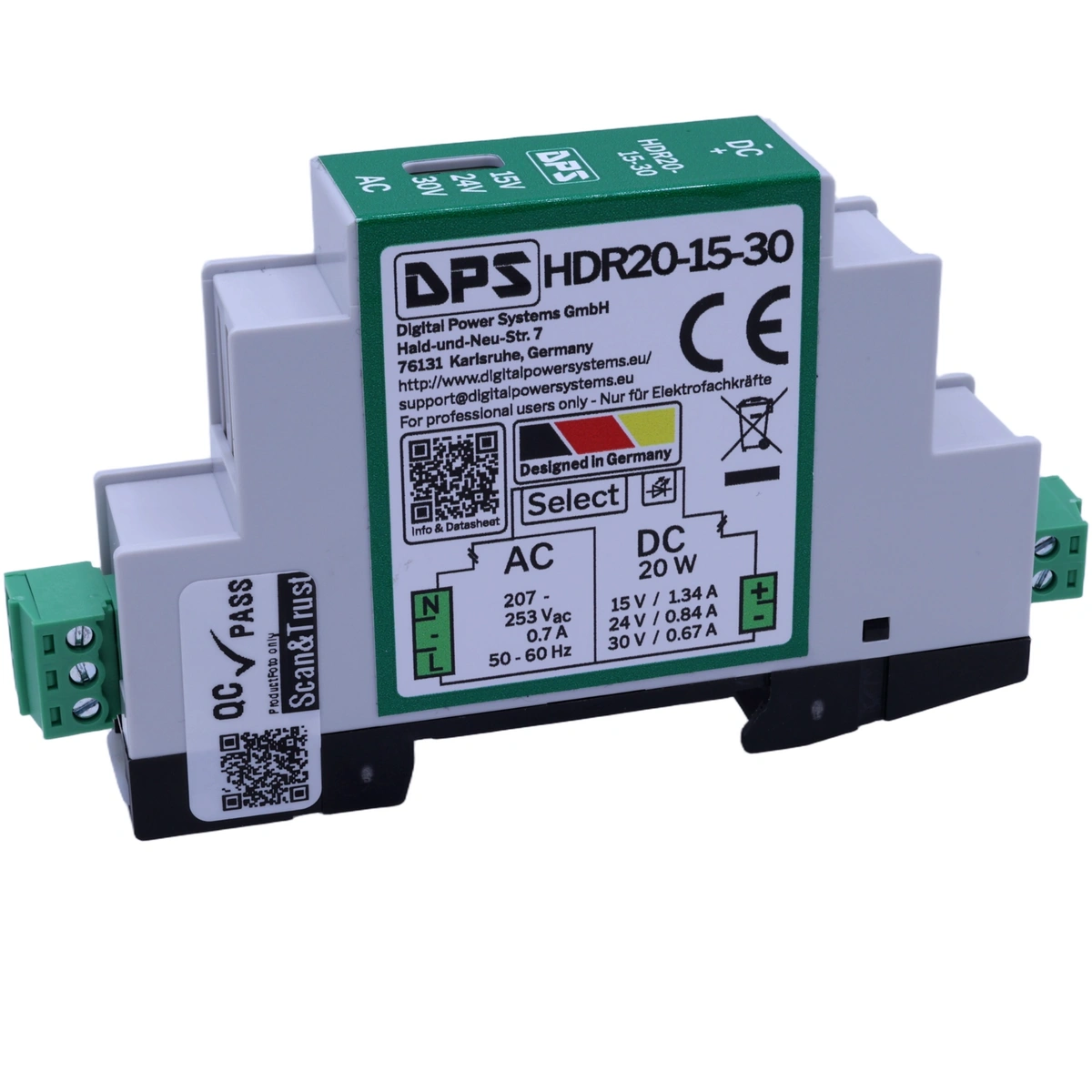

HDR20-15-30

230Vac 20W 15V | 24V | 30V AC/DC NoElko Power Supply

Key Features Downloads Similar Products Logistics Data Support

Quantity	Unit Price	Saving
1+	EUR 32.00	—
25+	EUR 26.99	-16%
100+	EUR 22.71	-29%
More Quantity, More Savings. Please Quote!

In Stock — 50 units SKU: HDR20-15-30

Unit: EUR 32.00

Total: EUR 32.00 excl. VAT, plus Shipping costs

compare_arrows Add to Comparison

Key Features

18mm DIN Rail width
<100mW Standby Power @ Vout=24 V
High efficiency up to 86 %
Long life / Electrolytic capacitor free
Output Voltage selectable by switch:
– 15 Vdc - 1.34 Adc,max
– 24 Vdc - 0.84 Adc,max
– 30 Vdc - 0.67 Adc,max
207 Vac to 253 Vac input voltage range
Output short circuit proof
Active output overvoltage Protection
Green Power LED

Product Description

The HDR20-15-30 is 230Vac power supply for DIN RAIL control cabinets. The output voltage is selectable by switch to 15 V@ 1.34Amax, 24 V@0.84Amax and 30V@0.67Amax. Thanks to the no-electrolytic-capacitor (NoElko) technology, exceptional reliability is achieved. An active output overvoltage protection with overheating protection discharges the output on overvoltage conditions. The device is resilient to typical operating failures: Input transient protection, output short circuit, open circuit, moderate input transients and moderate output transients. A green power led indicates stable operation. The device may be operated at ambient temperatures between -40°C and 50°C. Derating might be required. The device might emit switching noise when operated in standby.
